del K04.CK0738 630 tf Capacity

chnical specification

Nominal capacity, tf   630
Slide strokes, number per min 3...6
Output with 10 press-mold positions, maximum, pcs/h 3600
Forming mode double-sided
two step
Maximum depth of filling the press-mold, mm 250
Adjustment of press-mold filling Automatic,
push-button
Die space height, mm 1000
Die space dimensions, mm 980540
Main drive electric motor power, kW 36
Overall dimensions, mm
left to right
front to back
height above floor level
4000
5000
4500

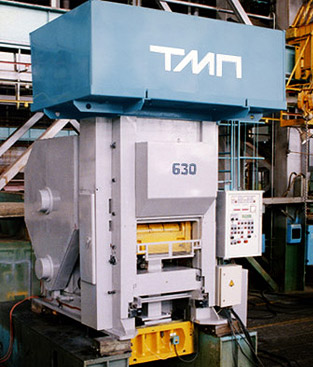

Special Mechanical Press for Semidry Forming

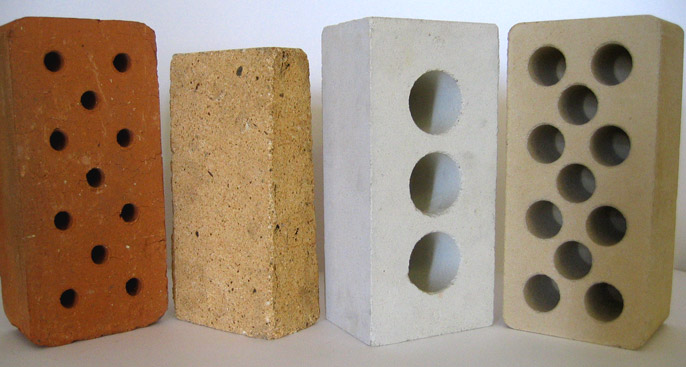

Intended for semi-dry forming of refractory, ceramic and lime-and-sand products (bricks).
