del 8040 1000 tf Capacity

  8040

chnical Specifications

Nominal capacity, tf  1000
Slide stroke, mm 280
Number of continuous stroke, min-1 90
Number of single engagements, min-1 26
Die height, mm 710
Adjustment,mm 10
Bed dimensions, mm
left to right
front to back

930
1000

Slide dimensions, mm
left to right
front to back

800
980

Main drive electric motor power, kW 55
Overall press dimensions, mm
left to right
front to back
height above floor level

4820
3585
5780

  • With optional changes to technical specifications.
  • The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.


Hot Forging Crank Press

Designed for production of forgings from ferrous and non-ferrous metals

  • Increased zones of eccentric load application
  • Production of highly accurate forgings
  • Long term operation of the eccentric shaft bearings and connecting rods with optimal clearances
  • Quick change and convenient die setting
  • Quick elimination of press stalling
  • Automated options available
  • Effective control and diagnosis

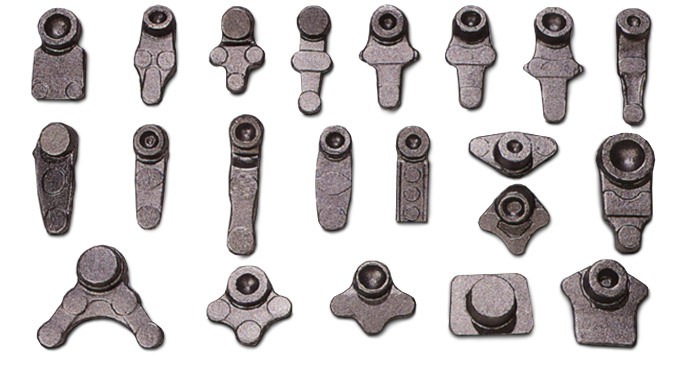

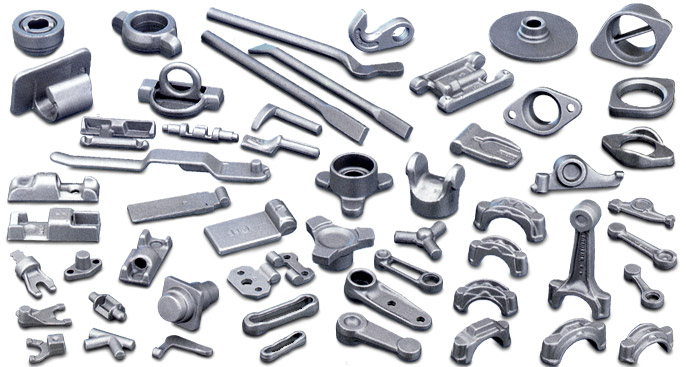

Forgings Produced on the Press

  07

  05
