Моdel KГ8042A 1600 tf Capacity

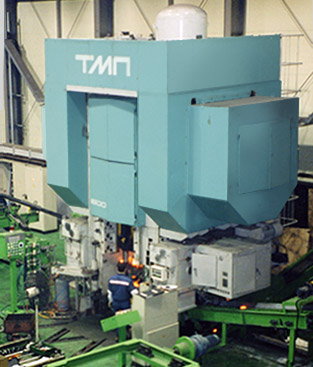

Объемная горячештамповочная КГ8042А

Теchnical Specifications

Nominal capacity, tf  1600
Slide stroke, mm 400
Number of continuous stroke, min-1 50
Number of single engagements, min-1 20
Die height, mm 860
Adjustment,mm 10
Bed dimensions, mm
left to right
front to back

1260
1300

Slide dimensions, mm
left to right
front to back

1120
1400

Main drive electric motor power, kW 132
Overall press dimensions, mm
left to right
front to back
height above floor level

5840
4150
6380

  • With optional changes to technical specifications.
  • The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.


 Hot Forging Crank Press

Designed for production of forgings from ferrous and non-ferrous metals

  • Increased zones of eccentric loads application
  • High accuracy of produced forgings
  • Long term operation of the eccentric shaft bearings and connecting rods with optimal clearances
  • Quick change and convenient die setting
  • Quick elimination of the press stalling
  • Automatic means possibilities
  • Effective control and diagnosis

Forgings Produced on the Press

Объемная горячештамповочная Детали07

Объемная горячештамповочная Детали05
