Моdel KБ8544Б 2500 tf Capacity
|
Теchnical Specifications
| Nominal capacity, tf |
2500 |
| Slide stroke, mm |
350 |
| Number of continuous stroke, min-1 |
70 |
| Number of single engagements, min-1 |
20 |
| Die height, mm |
1000 |
| Adjustment,mm |
10 |
Bed dimensions, mm
left to right
front to back |
1280
1400
|
Slide dimensions, mm
left to right
front to back |
1090
1150
|
| Main drive electric motor power, kW |
110 |
Overall press dimensions, mm
left to right
front to back
height above floor level |
5940
4330
7300
|
- Changes to the technical specifications are available.
- The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.
|
|
Hot Forging Crank Press
Designed for production of forgings from ferrous and non-ferrous metals
- Increased zones of eccentric loads application
- High accuracy of produced forgings
- Long term operation of the eccentric shaft bearings and connecting rods with optimal clearances
- Quick change and convenient die setting
- Quick elimination of the press stalling
- Automatic means possibilities
- Effective control and diagnosis

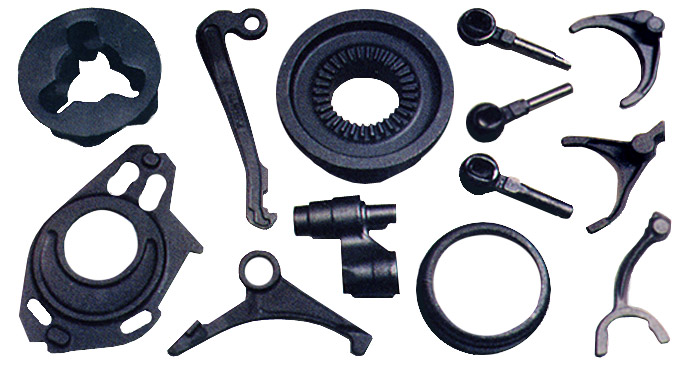

Forgings Produced on the Press
|
