Home ProductsDie Forging EquipmentМоdel KБ8046 4000 tf Capacity

Моdel KБ8046 4000 tf Capacity

Объемная горячештамповочная КБ8046

Теchnical Specifications

Nominal capacity, tf 4000
Slide stroke, mm 400
Number of continuous stroke, min-1 50
Number of single engagements, min-1 14
Die height, mm 1200
Adjustment,mm 10
Bed dimensions, mm
left to right
front to back


Slide dimensions, mm
left to right
front to back


Main drive electric motor power, kW 160
Overall press dimensions, mm
left to right
front to back
height above floor level


  • With optional changes to technical specifications.
  • The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.

Hot Forging Crank Press

Designed for production of forgings from ferrous and non-ferrous metals

  • Increased zones of eccentric loads application
  • High accuracy of produced forgings
  • Long term operation of the eccentric shaft bearings and connecting rods with optimal clearances
  • Quick change and convenient die setting
  • Quick elimination of the press stalling
  • Automatic means possibilities
  • Effective control and diagnosis

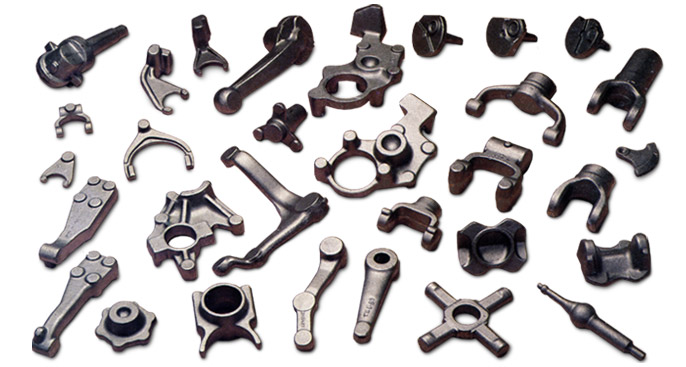

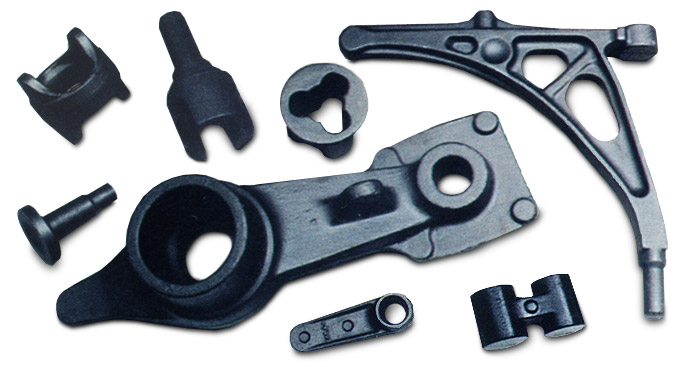

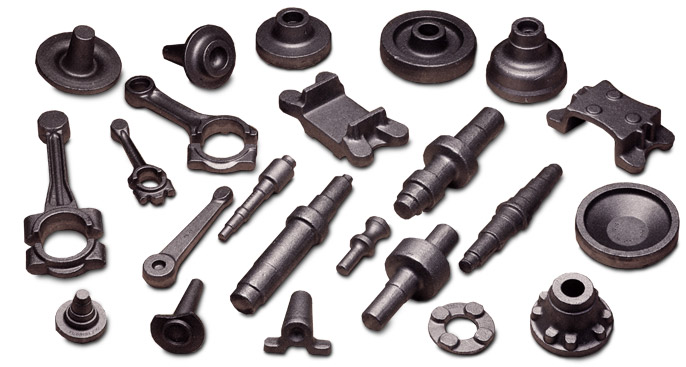

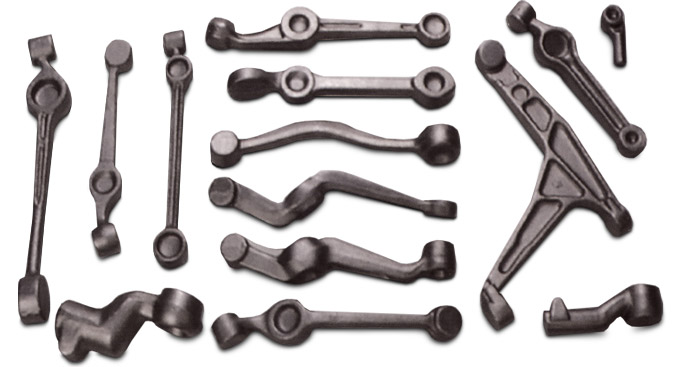

Forgings Produced on the Press

Объемная горячештамповочная Детали01

Объемная горячештамповочная Детали011

Объемная горячештамповочная Детали06

Объемная горячештамповочная Детали0
