Моdel KГ8048 6300 tf Capacity

Объемная горячештамповочная КГ8048

Теchnical Specifications

Nominal capacity, tf  6300
Slide stroke, mm 460
Number of continuous stroke, min-1 40
Number of single engagements, min-1 12
Die height, mm 1350
Adjustment,mm 13
Bed dimensions, mm
left to right
front to back


Slide dimensions, mm
left to right
front to back


Main drive electric motor power, kW 320
Overall press dimensions, mm
left to right
front to back
height above floor level


  • With optional changes to technical specifications.
  • The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.

Hot Forging Crank Press

Designed for production of forgings from ferrous and non-ferrous metals

  • Increased zones of eccentric loads application
  • High accuracy of produced forgings
  • Long term operation of the eccentric shaft bearings and connecting rods with optimal clearances
  • Quick change and convenient die setting
  • Quick elimination of the press stalling
  • Automatic means possibilities
  • Effective control and diagnosis

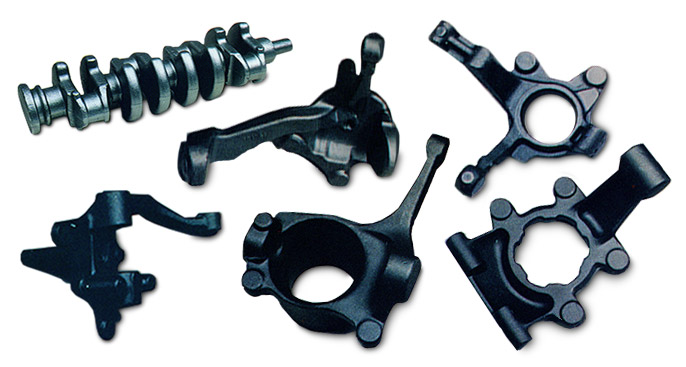

Forgings Produced on the Press

Объемная горячештамповочная Детали_0

 Объемная горячештамповочная Детали012
