Моdel K8049 9000 tf Capacity

Теchnical specification

Nominal capacity, tf  9000
Slide stroke, mm 490
Number of continuous stroke, min-1 40
Number of single engagements, min-1 8
Die height, mm 1600
Adjustment,mm 13
Bed dimensions, mm
left to right
front to back


Slide dimensions, mm
left to right
front to back


Main drive electric motor power, kW 400
Overall press dimensions, mm
left to right
front to back
height above floor level


  • Changes to the technical specifications are available.
  • The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.

Hot Forging Crank Press

Designed for production of forgings from ferrous and non-ferrous metals

  • Increased zones of eccentric loads application
  • Production of highly accurate forgings
  • Long term operation of the eccentric shaft bearings and connecting rods with optimal clearances
  • Quick change and convenient die setting
  • Quick elimination of press stalling
  • Automated options available
  • Effective control and diagnosis

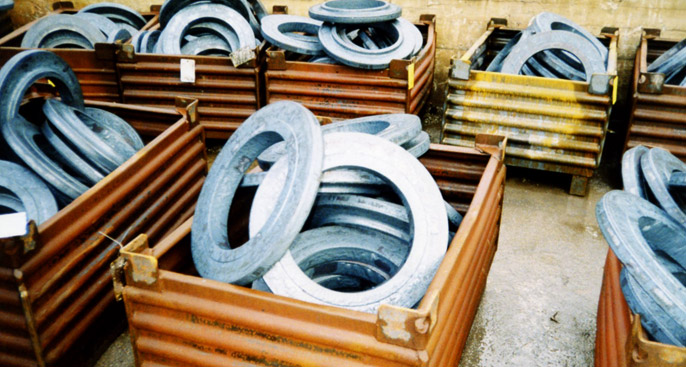

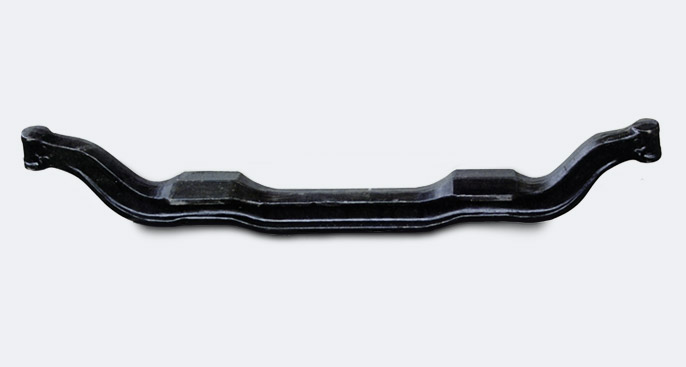

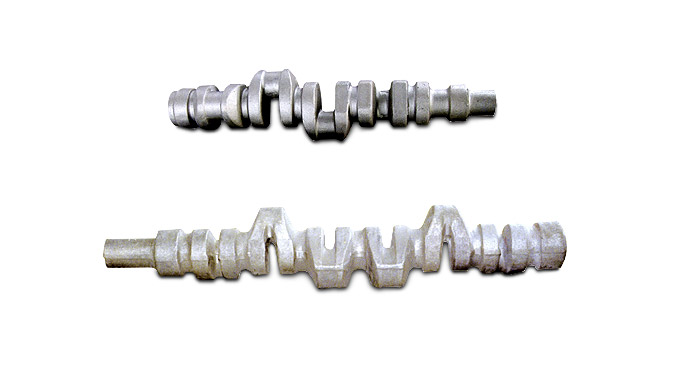

Forgings Produced on the Press

Объемная горячештамповочная Детали04

Объемная горячештамповочная для8000с

Объемная горячештамповочная Детали08
