Home ProductsDie Forging EquipmentМоdel K8551 12500 tf Capacity

Моdel K8551 12500 tf Capacity

Объемная горячештамповочная К8551

Теchnical Specifications

Nominal capacity, tf  12500
Slide stroke, mm 520
Number of continuous stroke, min-1 35
Number of single engagements, min-1 6
Die height, mm 1800
Adjustment,mm 17
Bed dimensions, mm
left to right
front to back

2500
3100

Slide dimensions, mm
left to right
front to back

2460
2680

Main drive electric motor power, kW 500
Overall press dimensions, mm
left to right
front to back
height above floor level

10060
7380
10540

  • Changes to the technical specifications are available.
  • The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.


Hot Forging Crank Press

Designed for production of forgings from ferrous and non-ferrous metals

  • Increased zones of eccentric loads application
  • High accuracy of produced forgings
  • Long term operation of the eccentric shaft bearings and connecting rods with optimal clearances
  • Quick change and convenient die setting
  • Quick elimination of the press stalling
  • Automatic means possibilities
  • Effective control and diagnosis

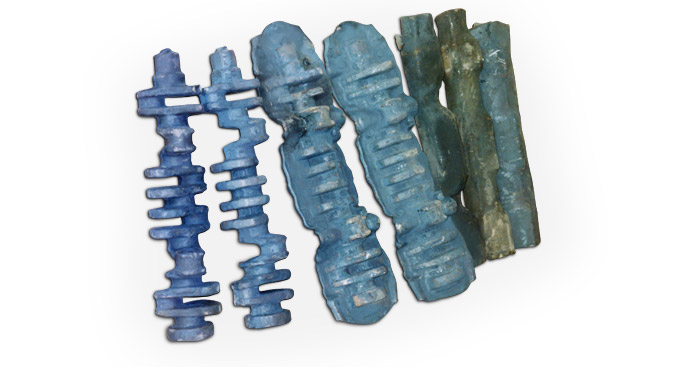

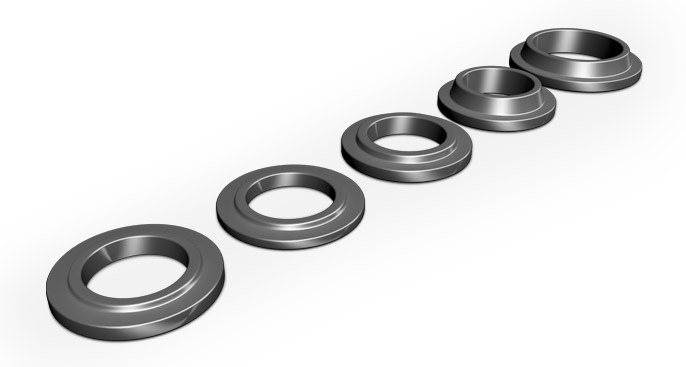

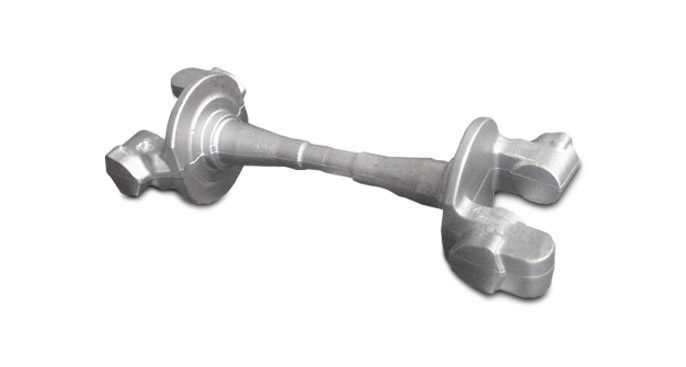

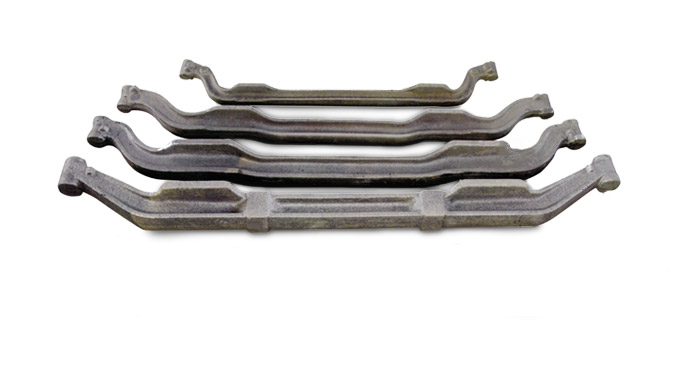

Forgings Produced on the Press

Объемная горячештамповочная Детали013

Объемная горячештамповочная Детали03

Объемная горячештамповочная Детали014

Объемная горячештамповочная Детали03
