del KE8340 1000 tf Capacity

chnical Specifications

Nominal capacity, tf 1000
Slide stroke, mm 170
Number of continuous strokes, min-1 32
Number of single switchings, min-1 (not more) 20
Rated distance of the slide above bottom, mm 4,5
Die height, mm 470
Adjustment, mm 12
Slide dimensions, mm
left to right
front to back
800
820
Bolster plate dimensions, mm
left to right
front to back
800
950

Upper knock-out

stroke, mm

force, tf

12
10

Lower knock-out

stroke, mm

force, tf

100
32
Main drive electric motor power, kW 45
Overall press dimensions, mm
left to right
front to back
height above floor level
2780
2050
4200

With optional changes to technical specifications



Knuckle-Joint Coining Press

Designed for cold stamping operations, requiring high pressure at small strokes: coining, straightening, sizing, die forming.

  • Press is designed on the basis of the standard knuckle-joint actuating mechanism, which has the advantage of a relatively simple design and minimum mass.
  • The box-type slide moves along adjustable guides. There is a built-in mechanical upper knock-out inside the slide.
  • Adjustment of the die height of the press is executed by rotation of the upper eccentric axle of the slide using an individual electric drive.
  • Clutch and brake have pneumatic engagement.
  • Lower knock-out is used for knocking-out of forgings from the lower die part.
  • Press is equipped with automatic centralized system of circulating oil lubrication.

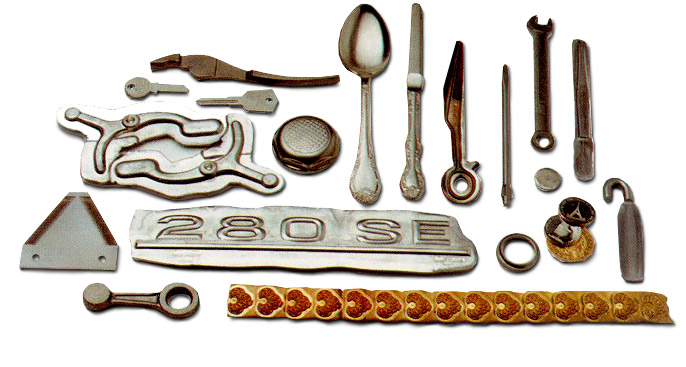

Forgings Produced on the Press
