del 8839 800/800 tf Capacity

Technical Specifications

Inner slide nominal capacity, tf

800

Outer slide nominal capacity, tf

800

Continuous run frequency, min-1

40

Inner slide stroke, mm

320

Outer slide stroke, mm

260

Inner slide die height, mm

1330

Outer slide die height, mm

1080

Adjustment, mm 10
Bed dimensions, mm
left to right
front to back
1400
1300
Inner slide dimensions, mm
left to right
front to back
670
560
Outer slide dimensions, mm
left to right
front to back
1500
1000
Main drive electric motor power, kW 90
Overall press dimensions, mm
left to right
front to back
height above floor level
5800
4100
7200
  • With optional changes to technical specifications.
  • The type and specification of the upper and lower knock-outs are defined by the customer’s technical requirements.


Double-Action Hot Forging Press

Intended for accurate flash-free forging in horizontally split dies of complex shapes such as spiders, solid or hollow hubs with projecting parts such as branches, ribs, flanges and bosses.

  • Divided drive of outer and inner slide.
  • Pneumatic-hydraulic capacity compensator of outer slide.
  • Independent adjustment of the inner slide shut height.
  • High productivity and part quality.
  • The highest results in metal savings.

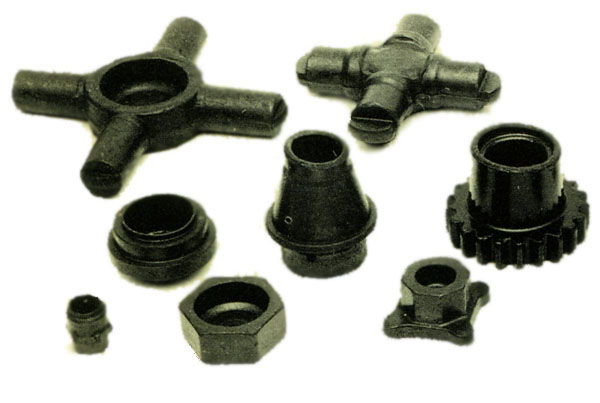

Forgings Produced on the Press
