Model ÂÏ-160À

Ïðåññû ãèäðàâëè÷åñêèå äëÿ âóëêàíèçàöèè ê

Òåchnical Specifications

Nominal capacity, tf 200
Belt length, mm 3750…12000

Heating plates dimension, mm
left to right

front to back
thickness

 1200
600
40
Distance between upper and lower heating plates, mm 270
Plunger stroke, maximum, mm 270
Electric motors total installed power, kW 9,5

Overall dimensions, mm
left to right
front to back

Height above floor level

6990
2100

2150


Hydraulic Press

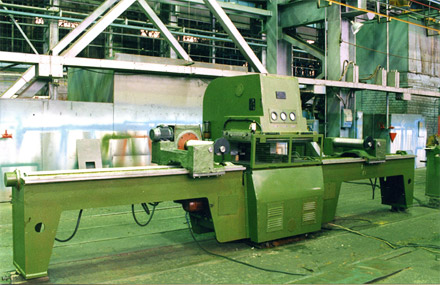

Hydraulic press Model ÂÏ-160À  is intended for vulcanization of V-belts with lengths from 3750 to 12000 mm with various profiles.

The vulcanization of rubber products is carried out in heated metal press-molds.

The press has adjustable extended fixtures and an individual hydraulic station providing a press capacity of 200 tf. The control system automatically sustains the required pressure and preset vulcanization time.
