Home ProductsSheet Metal Stamping EquipmentМоdel KЖ9538 630 tf Capacity

Моdel KЖ9538 630 tf Capacity

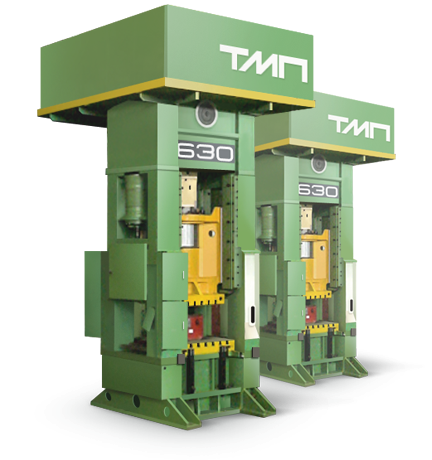

Листовая онокр прост д закрытые КG9538

Теchnical Specifications

Nominal capacity, tf   630
Rated distance of slide above bottom, mm 6
Slide stroke, mm 400
Continuous run frequency, min-1 25
Single strokes max. frequency, min-1 19
Shut height, mm 570
Shut height adjustment,mm 180
Slide dimensions, mm
left to right
front to back		 1000
1000
Bolster plate dimensions, mm
left to right
front to back		 1250
1250
Main drive electric motor power, kW 45
Overall dimensions, mm
left to right
front to back
height above floor level		 3100
3650
6115

With optional changes to technical specifications.

The given press has the hydraulic safety device in the slide.



Straight Side Single Action Single-Crank Ppress

Intended for production of a variety of parts from sheets using various cold stamping operations: blanking, punching, non-deep drawing, bending, etc. The press can perform flash trimming of billets, in a hot or cold state, produced using the hot-forging equipment.

Parts Stamped on the Press

Листовая онокр прост д закрытые деталь01

Листовая онокр прост д закрытые деталь02
