Straight Side Single Action Single-Crank Press

Home

Products

Sheet Metal Stamping Equipment

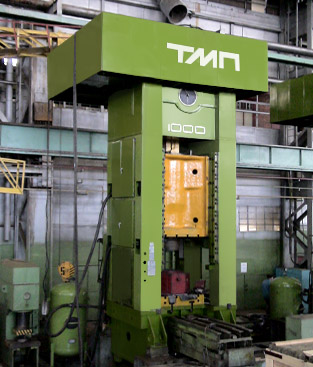

Моdel KA9540 1000 tf Capacity

Листовая онокр прост д закрытые KA9540

Теchnical Specifications

Nominal capacity, tf	1000
Rated distance of slide above bottom , mm	12
Slide stroke, mm	500
Continuous run frequency, min-1	20
Single strokes max. frequency, min-1	15
Shut height, mm	680
Shut height adjustment,mm	200
Slide dimensions, mm left to right front to back	1265 1250
Bolster plate dimensions, mm left to right front to back	1250 1250
Main drive electric motor power, kW	75
Overall dimensions, mm left to right front to back height above floor level	4310 3870 6980

The given press has the hydraulic safety device in the slide.

With optional changes to technical specifications.

Intended for production of a variety of parts from sheets using various cold stamping operations: blanking, punching, non-deep drawing, bending, etc. The press can perform flash trimming of billets, in a hot or cold state, produced using the hot-forging equipment.

Parts Stamped on the Press
