del KA9036 400 tf Capacity

    KA9036

chnical Specifications

Nominal capacity, tf   400
Rated distance of slide above bottom, mm 8
Slide stroke, mm 280
Continuous run frequency, min-1 45
Single strokes maximum frequency, min-1 -
Shut height, mm 800
Shut height adjustment,mm 20
Slide dimensions, mm
left to right
front to back
1500
1000
Bolster plate dimensions, mm
left to right
front to back
1600
1120
Main drive electric motor power, kW 40
Overall dimensions, mm
left to right
front to back
height above floor level
4490
3200
5315

With optional changes to technical specifications.

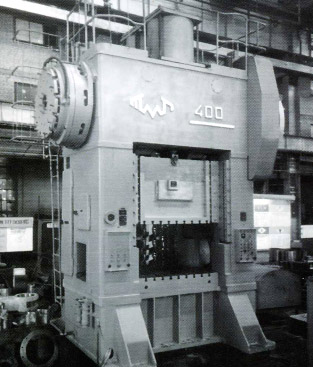

Two-Crank Straight Side Trimming Press

Intended for flash trimming in the hot and cold states. It can be used for cold sheet metal stamping, bending, piercing, straightening and sizing.
