Model K5040 630/400 tf Capacity

Model K5040

Теchnical Specifications

Drawing slide capacity, tf1000
Rated distance of slide above bottom, mm

16

Drawing slide stroke, mm1000
Drawing slide shut height, mm1120
Drawing slide dimensions, mm
left to right
front to back

1250
1250

Blankholder nominal capacity, tf630
Rated distance of blankholder above bottom, mm6
Blankholder stroke, mm800
Blankholder shut height, mm970
Blankholder dimensions, mm
left to right
front to back

2000
2000

Continuous run frequency, min-14...8
Slides single strokes max. frequency, min-1

2...5

Shut height adjustment,mm320
Bolster plate dimensions, mm
left to right
front to back

2000
2000

Main drive electric motor power, kW132
Overall dimensions, mm
left to right
front to back
height above floor level

4900
4900
8600

With optional changes to technical specifications.



Single-Crank Double Action Press

Intended for production of stamped symmetric items or hollow parts with a similar configuration from sheets using deep drawing operations with blank clamping.

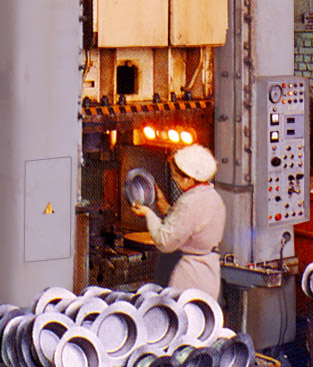

Parts Stamped on the Press

Листовая однокр двойного действия деталь
